Application fields and types of four-point angular contact bearings

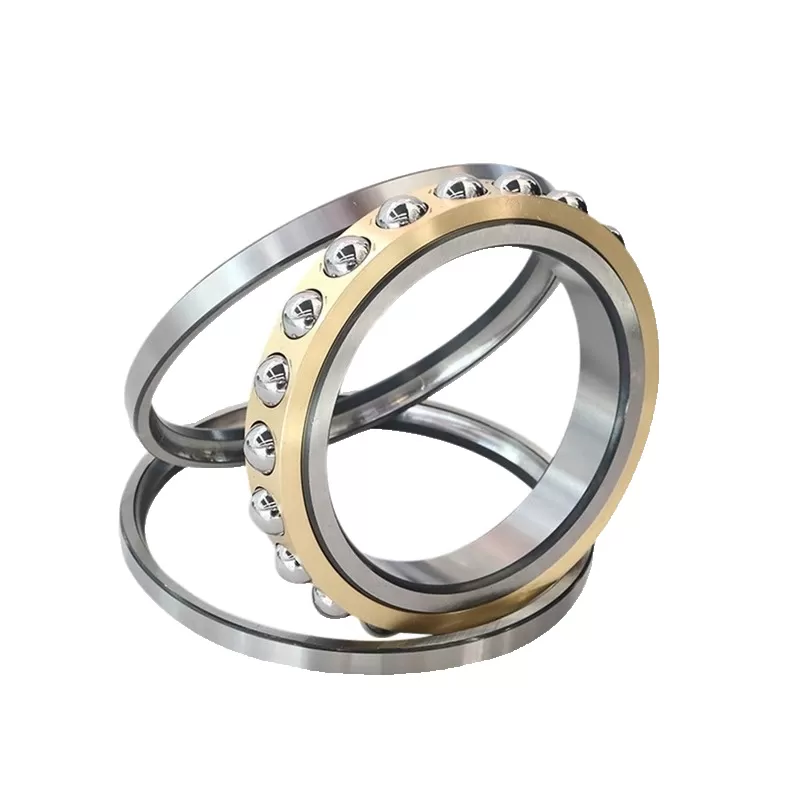

A four-point angular contact bearing is a specialized type of rolling element bearing designed to accommodate axial loads in both directions. Here are its key features:

  1. Design: It consists of two rings (inner and outer) with a ball or rolling element that sits between them. The design allows for four points of contact between the ball and the raceways.

  2. Load Capacity: This configuration enables the bearing to support high axial loads and moderate radial loads, making it suitable for applications that require precision and stability.

  3. Misalignment: It can handle some angular misalignment between the shaft and the housing, which is beneficial in dynamic applications.

  4. Applications: Commonly used in machine tool spindles, turntables, and other precision machinery where accurate positioning is crucial.

Four-point angular contact bearings have a variety of applications across different fields due to their unique design and load-handling capabilities. Here are some common application fields and types:

Application Fields

  1. Machine Tool Industry: Used in spindles, tool holders, and other precision equipment where accurate positioning is required.

  2. Aerospace: Employed in aircraft components, landing gear, and engine parts, where reliability and performance are critical.

  3. Robotics: Used in robotic arms and joints, allowing for smooth and precise movement.

  4. Automotive: Found in wheel hubs, steering systems, and transmissions, where they manage both axial and radial loads.

  5. Medical Equipment: Utilized in surgical instruments and imaging devices that require high precision and stability.

  6. Wind Turbines: Implemented in the yaw and pitch control systems to ensure optimal alignment and efficiency.

Types of Four-Point Angular Contact Bearings

  1. Single Row: The most common type, designed for moderate loads and applications requiring simple mounting.

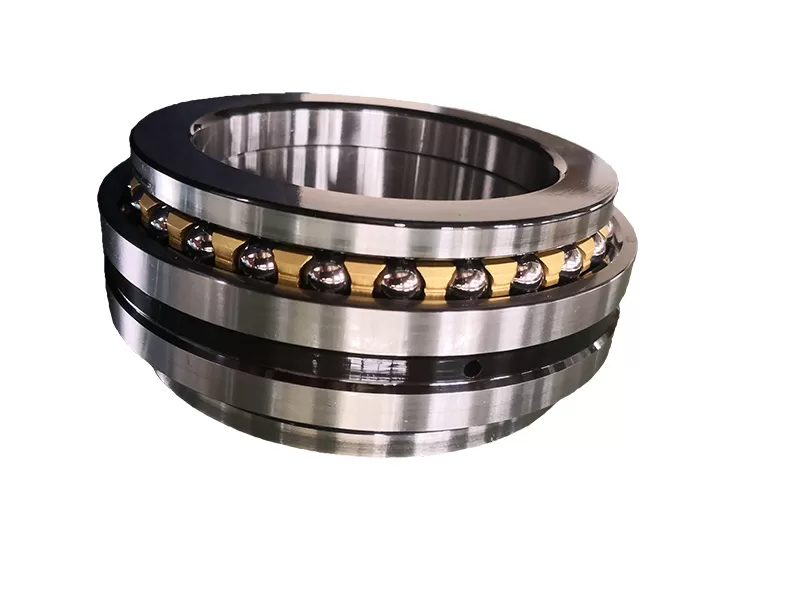

  2. Double Row: These bearings can accommodate higher loads and provide increased stability due to their dual row design.

  3. Thin-Section: Designed for applications with space constraints, offering high performance in a compact size.

  4. Sealed or Shielded: Some variants come with seals or shields to protect against contamination and enhance longevity.

  5. Self-Aligning: These bearings can tolerate some misalignment, making them suitable for applications where perfect alignment cannot be guaranteed.

Each type is selected based on specific requirements such as load capacity, space constraints, and environmental conditions.
